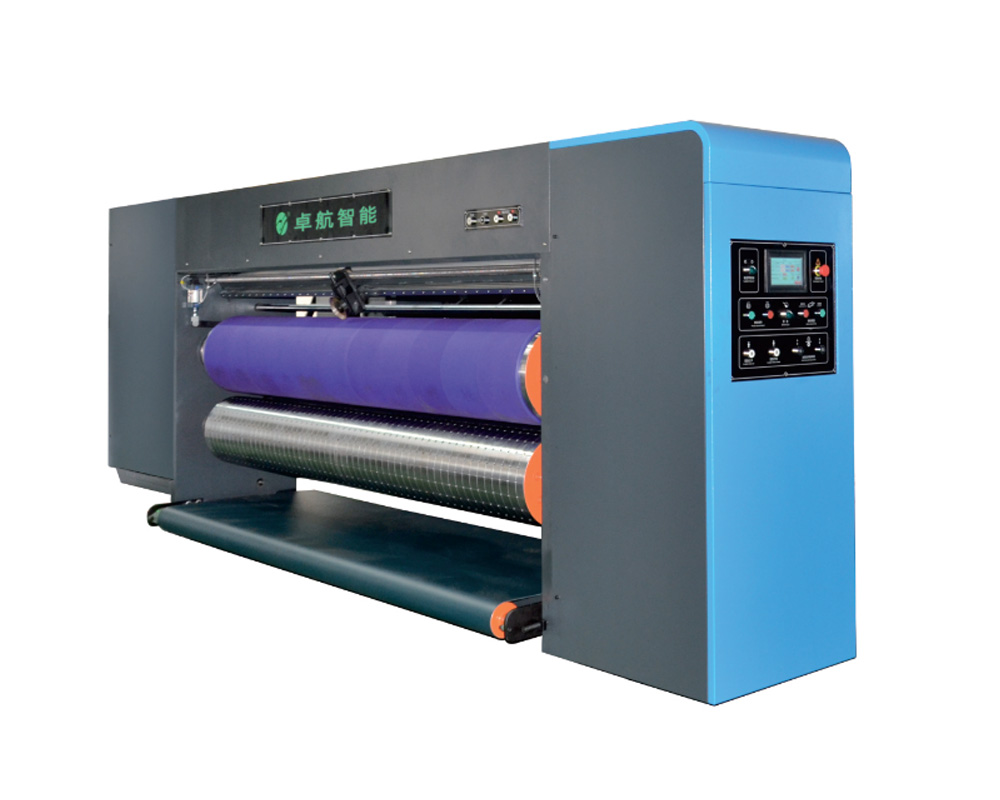

Die cutting unit

Adopt PLC control, color touch screen, parameter setting and visual display.
The cutter die roller and rubber roller are made of quality steel with surface grinding and hard chrome plating.
Balance correction ensures the stable running.
Rubber roller mechanical spiral reversing 50mm moving device.
Die-cut phase, computer and electric digital control.
Transverse phase, computer and electric digital control, control range is ±10mm.
The rubber roller and cutter die clearance adopt electric digit control.
The rubber roller cutting and levelling device is equipped to keep the surface of the rubber roller smooth.

Technical parameters

型号/Model	920	924	1224	1424	1628	1632
最高机械速度(张/分) Maximum mechanical speed (pieces per minute)	320	300	250	220	180	160
最大进纸尺寸(mm) Maximum paper feeding size (mm)	900×2050	900×2450	1200×2450	1400×2450	1600×2850	1600×3250
最小进纸尺寸(mm) Minimum paper feeding size (mm)	280×600	280×600	320×600	380×600	450×600	450×600
隔张进纸尺寸(mm) Paper feeding gap size (mm)	1200×2050	1200×2450	1500×2450	1700×2450	1900×2850	1900×3250
最大印刷面积(mm) Maximum printing area (mm)	870×2000	870×2400	1170×2400	1370×2400	1570×2800	1570×3200
印刷精度(mm) Printing accuracy (mm)	±0.5
最小开槽间距(mm)正刀 Minimum slot spacing (mm)Straight cutting tool	160×160×160×160
最小开槽间距(mm)反刀 Minimum slot spacing (mm) reverse cutter	250×70×250×70
最大槽深(mm) Maximum slot depth (mm)	250	250	300	350	400	400
