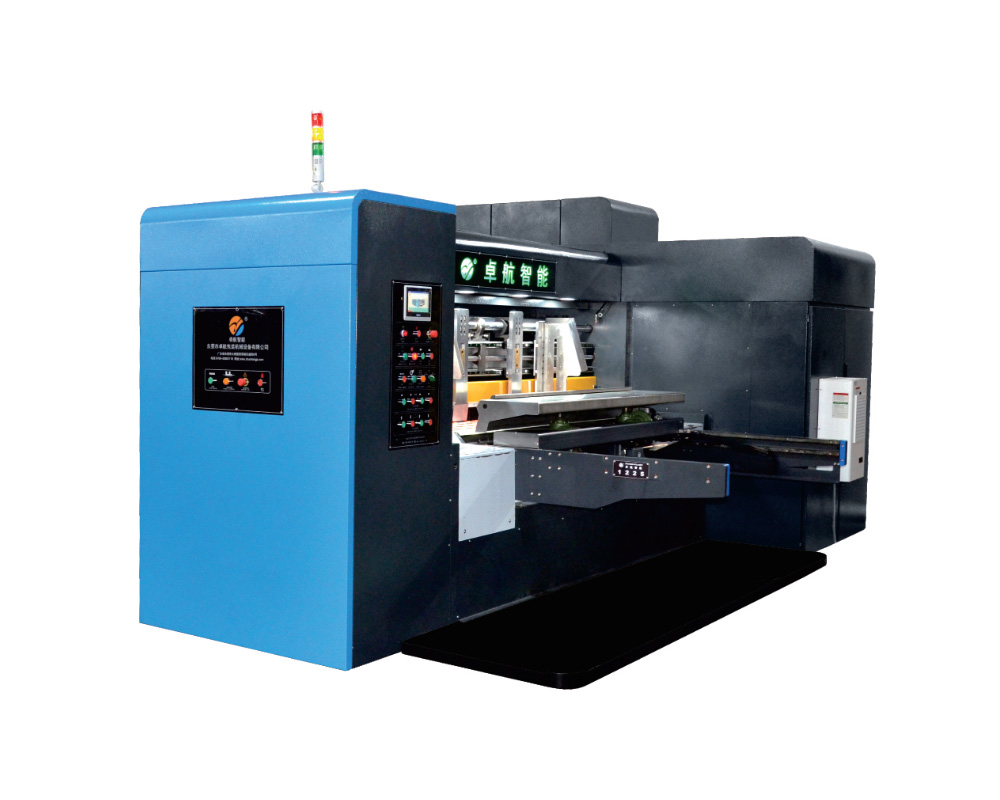

Paper feeding unit (servo pressure free leading edge paper feeding system)
PLC control, color touch screen, parameter setting and visual display.
Servo independent drive paper feeding system.
Advanced servo non-pressing paper system, instead of the traditional roller into the paper, to ensure that the strength of the board is not damaged.
Can be continuous or separate sheet feed paper.
Leading edge paper feed to increase suction flow; Paper feed is smoother and more accurate.
Frequency conversion controls the vacuum flow and pressure to match the cardboard size.
Feed stroke can be servo adjusted.
Dust removal device, suction to remove cardboard surface scraps.
The position of the left and right baffle board, electric adjustment, speed up the setting speed, the front baffle upper and lower clearance manual adjustment.
