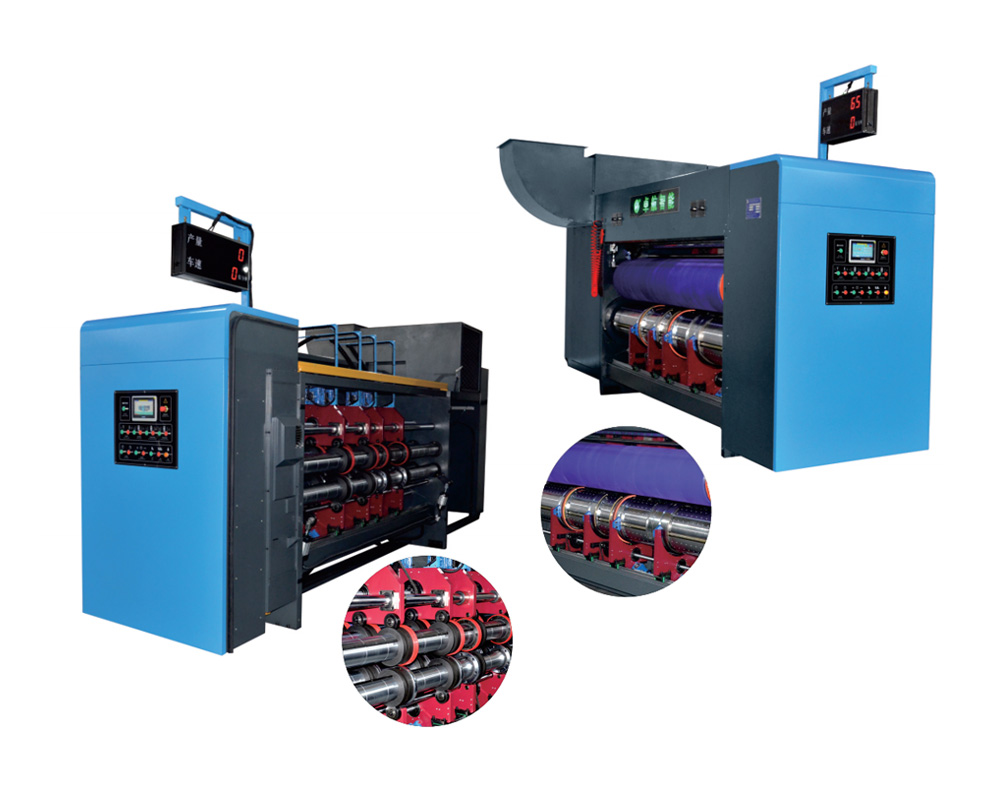

Die-cutting unit (Servo-driven eight-axis slotless without tooling + tool path separation)
Using PLC control, a color touch screen, parameter setting and intuitive display.
The wire pressing adopts double pre-pressing and single pressing wire structure, and is combined with servo motors for automatic positioning and adjustment.
The knife ring is separated from the wire pressing, enabling simultaneous adjustment and separate adjustment for dual use.
The first pre-pressing wheel, the second pre-pressing wheel, the third wire pressing, the paperboard after pre-pressing is less likely to be damaged.
The knife roller is combined with the non-pressing knife ring for left and right servo electric horizontal movement.
The lower pre-pressing and lower wire pressing are coordinated with linear guides for synchronous servo electric left and right horizontal movement.
The upper pre-pressing and upper wire pressing are coordinated with linear guides for synchronous servo electric left and right horizontal movement.
The box height of four knives is adjusted synchronously by servo computer electric movement.
The knife mold rod and the rubber pad rod are made of high-quality steel, with surface grinding and hard chrome plating.
Balance correction is added to increase operation stability.
Cutting servo phase, computer and electric digital control.
The gap between the rubber pad rod and the knife mold rod is electrically controlled by digital means.
The cutting and smoothing structure of the rubber pad rod maintains the flatness of the rubber pad surface.
